ENHANCE YOUR ELECTRIC RIDE

The X-9000 Power Kit is compatible with a range of Electric Motorcycles and a range of Motors.

A plug and play kit for the following Electric Motorcycles

SurRon Light Bee

Talaria MX3

Talaria MX4

The Kit you purchase from us will contains all the parts needed for an OEM Replacement with the X-9000.

This Kit is a direct bolt in for the SurRon Light Bee and Talaria Sting bikes with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).

The current list of Motors that the X9000 is compatible with is below

OEM SurRon Light Bee

OEM Talaria Sting MX3

OEM Talaria Sting R MX4

EBMX XLB-60

EBMX XUB-80

KO RS SurRon

KO F Spec SurRon

KO F Spec Talaria

Sotion FW01

Sotion FW02

Sotion FW01 Pro

Apollo RFN

ME1803 water cooled

QS Braaap Moto E Hub Motor

EBMX combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor Controller. The X-9000 has been purpose built with dirt bike riders in mind.

Using components sourced from reputable suppliers, each item has been engineered for peak performance, from the CNC machined internals and bus bars, injection molded cover to the fully waterproof construction.

Whether you are trying to nail a wheelie, riding hard enduro, competing in a race series, commuting to work, or just cruising the trails with your family the X-9000 is built to give you ultimate freedom and control.

Custom EBMX App for tuning and full control Available free in the App Store and Google Play Store

Multiple power modes and full adjustment in each mode

Adjustable speed limits for different ride modes

Customizable dashboard to set the display up how you want

Built in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights and other 12v accessories as required and controllable through the app.

Air-cooled heatsink as standard (comes in black, blue, red, gold or purple).

Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67 rated connectors for the harnesses.

Direct bolt in for the SurRon Light Bee and Talaria Sting bikes with no extra brackets needed no phase wire extensions or other additional parts harness adapter included

Integration with both SurRon hall-based motors and Talaria encoder motors

SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all of the regular display info

Can be setup with a smart phone for the display or to check info as desired

Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.

MTRC043 Description EBMX X-9000 Motor Controller Version 2

The motor controller in an electric vehicle (EV) regulates the power delivered from the battery to the electric motor. It manages the motor’s speed, torque, and efficiency by adjusting the electrical input based on driving conditions and user commands. Typically featuring sophisticated electronics, the motor controller ensures smooth acceleration, regenerative braking, and overall optimal performance of the EV.

Details

ENHANCE YOUR ELECTRIC RIDE

The X-9000 Power Kit is compatible with a range of Electric Motorcycles and a range of Motors.

The Kit you purchase from us will contains all the parts needed for an OEM Replacement with the X-9000.

This Kit is a direct bolt in for the SurRon Light Bee and Talaria Sting bikes with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).

EBMX combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor Controller. The X-9000 has been purpose built with dirt bike riders in mind.

Using components sourced from reputable suppliers, each item has been engineered for peak performance, from the CNC machined internals and bus bars, injection molded cover to the fully waterproof construction.

Whether you are trying to nail a wheelie, riding hard enduro, competing in a race series, commuting to work, or just cruising the trails with your family the X-9000 is built to give you ultimate freedom and control.

Built in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights and other 12v accessories as required and controllable through the app.

Air-cooled heatsink as standard (comes in black, blue, red, gold or purple).

Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67 rated connectors for the harnesses.

SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all of the regular display info

Can be setup with a smart phone for the display or to check info as desired

Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.

A plug and play kit for the following Electric Motorcycles

SurRon Light Bee

SurRon Ultra Bee

Talaria MX3

Talaria MX4

Talaria XXX

The current list of Motors that the X9000 is compatible with is below

OEM SurRon Light Bee

OEM SurRon Ultra Bee

OEM Talaria Sting MX3

OEM Talaria Sting R MX4

EBMX XLB-60

EBMX XUB-80

KO RS SurRon

KO F Spec SurRon

KO F Spec Talaria

Sotion FW01

Sotion FW02

Sotion FW01 Pro

Apollo RFN

ME1803 water cooled

QS Braaap Moto E Hub Motor

If your model or motor isn't listed above then it won't work with your motor.

Custom EBMX App for tuning and full control Available free in the App Store and Google Play Store

Multiple power modes and full adjustment in each mode

Adjustable speed limits for different ride modes

Customizable dashboard to set the display up how you want

Direct bolt in for the SurRon Light Bee and Talaria Sting bikes with no extra brackets needed no phase wire extensions or other additional parts harness adapter included

Integration with both SurRon hall-based motors and Talaria encoder motors

IMPORTANT INFORMATION

Please be aware this motor controller comes without heatsink

Surron Ultra Bee requires a Harness part number BRCKT371

Specifications

RATED POWER: 40kw (CONTINUOUS)
INPUT VOLTAGE RANGE: 40v – 100v
WORKING VOLTAGE RANGE: 48v – 93v (22S)
PHASE: 1000A (continuous) 1500A (burst)
MAX EFFICIENCY: >95%
MAX BATTERY CURRENT : 500A
MOTOR CONTROL PROTOCAL: Field Oriented Control
INTERNALS: 30 Highly Efficient MOSFETS Extra beefy CNC machined terminal and connections 12V DC-DC converter with 4 configurable outputs CANBUS Ready
FIRMWARE: VESC based motor control and firmware modified by EBMX
OPERATING TEMPERATURE RANGE: minus 25 to 80 Degrees Celsius
INCLUSIONS: X-9000 Controller Air Cooled Heat Sink SW102 Display Regen Thumb Throttle 2-1 Harness Harness for SurRon Light Bee Harness for Talaria MX3/MX4
OPTIONAL ADDITIONS: Harness and Brackets for SurRon Ultra Bee Harness and Brackets for Talaria XXX Metal Shroud for SurRon Ultra Bee Plastic Shroud for SurRon Light Bee
WATERPROOFING: IP67
WARRANTY: 2 Years
HEAT SINK COLORS: Black / Red / Blue / Gold / Purple / Other limited edition

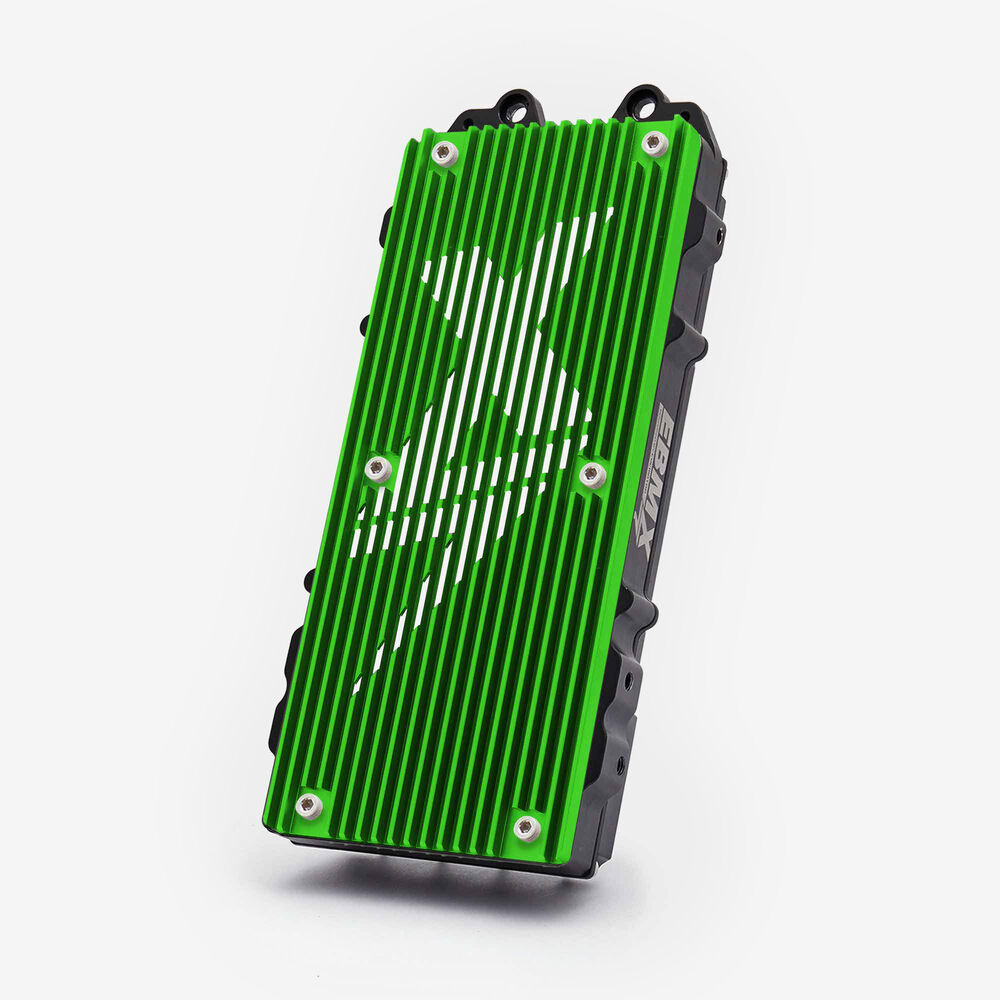

MTRCH011 Description EBMX X-9000 Motor Controller Heat Sink Version 2 Green Special Edition

Specifications

TMPO001 Description EBMX X-9000 Thermal Pad and Seal

This item has no description.

BLT890 Description X-9000 Controller Heatsink Bolts and Washers

A bolt in a motorcycle is a threaded fastener used to join or secure components together. It typically consists of a head and a shaft with external threads that engage with a corresponding nut or threaded hole. Bolts are used in various applications, including assembling engine parts, mounting accessories, and securing frame components.

IMPORTANT INFORMATION

Please note the 2 washer are for the centre fixings to seal the thermal pad.

Specifications
