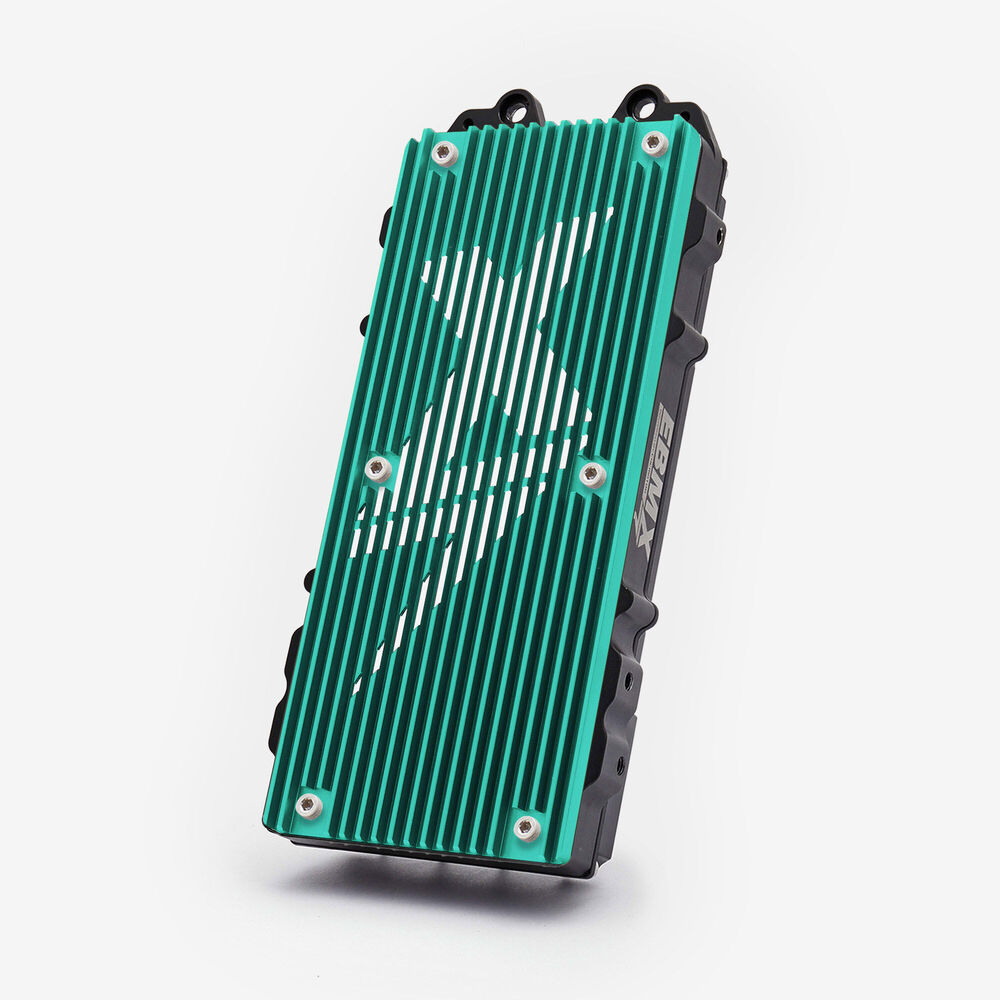

EBMX X-9000 Motor Controller Version 2 Teal (Special Edition) for Sting
MTRC101
£899.49
New Product
EBMX X-9000 Motor Controller Version 2 for Sting

ENHANCE YOUR ELECTRIC RIDE
The X-9000 Power Kit is compatible with a range of Electric Motorcycles and a range of Motors.
The Kit you purchase from us will contains all the parts needed for an OEM Replacement with the X-9000.
This Kit is a dir... view more

£899.49

Availability: Low Stock
Code: MTRC101 PLU: V8949 EAN: 5057645724216 RATED POWER: 40kw (CONTINUOUS) INPUT VOLTAGE RANGE: 40v – 100v WORKING VOLTAGE RANGE: 48v – 93v (22S) PHASE: 1000A (continuous) 1500A (burst) MAX EFFICIENCY: >95% MAX BATTERY CURRENT : 500A MOTOR CONTROL PROTOCAL: Field Oriented Control INTERNALS: 30 Highly Efficient MOSFETS Extra beefy CNC machined terminal and connections 12V DC-DC converter with 4 configurable outputs CANBUS Ready FIRMWARE: VESC based motor control and firmware modified by EBMX OPERATING TEMPERATURE RANGE: minus 25 to 80 Degrees Celsius INCLUSIONS: X-9000 Controller Air Cooled Heat Sink SW102 Display Regen Thumb Throttle 2-1 Harness Harness for SurRon Light Bee Harness for Talaria MX3/MX4 OPTIONAL ADDITIONS: Harness and Brackets for SurRon Ultra Bee Harness and Brackets for Talaria XXX Metal Shroud for SurRon Ultra Bee Plastic Shroud for SurRon Light Bee WATERPROOFING: IP67 WARRANTY: 2 Years HEAT SINK COLORS: Black / Red / Blue / Gold / Purple / Other limited ed

Order now for dispatch on Monday

Description

"You should buy this X-9000 Motor Controller Version 2"

ENHANCE YOUR ELECTRIC RIDE

The X-9000 Power Kit is compatible with a range of Electric Motorcycles and a range of Motors.

The Kit you purchase from us will contains all the parts needed for an OEM Replacement with the X-9000.

This Kit is a direct bolt in for the Talaria Sting with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).

EBMX combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor Controller. The X-9000 has been purpose built with dirt bike riders in mind.

Using components sourced from reputable suppliers, each item has been engineered for peak performance, from the CNC machined internals and bus bars, injection molded cover to the fully waterproof construction.

Whether you are trying to nail a wheelie, riding hard enduro, competing in a race series, commuting to work, or just cruising the trails with your family the X-9000 is built to give you ultimate freedom and control.

Custom EBMX App for tuning and full control Available free in the App Store and Google Play Store

Multiple power modes and full adjustment in each mode

Adjustable speed limits for different ride modes

Customizable dashboard to set the display up how you want

Built in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights and other 12v accessories as required and controllable through the app.

Air-cooled heatsink as standard (comes in black, blue, red, gold or purple).

Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67 rated connectors for the harnesses.

SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all of the regular display info

Can be setup with a smart phone for the display or to check info as desired

Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.

WRLM332 Description EBMX Harness (Talaria) for X-9000 Controller 200mm

A motorcycle wiring loom, also known as a wiring harness, is a bundle of wires and connectors that transmits electrical power and signals throughout the motorcycle. It organizes and protects the electrical wiring, ensuring connections between components such as the ignition system, lighting, and various sensors. The loom is typically wrapped in protective sheathing to guard against wear and damage, and is designed to streamline installation and maintain a neat, efficient electrical system.

Specifications

MTRC123 Description EBMX X-9000 Motor Controller Version 2 Teal

The motor controller in an electric vehicle (EV) regulates the power delivered from the battery to the electric motor. It manages the motor’s speed, torque, and efficiency by adjusting the electrical input based on driving conditions and user commands. Typically featuring sophisticated electronics, the motor controller ensures smooth acceleration, regenerative braking, and overall optimal performance of the EV.

Specifications

Contents
Qty Part Stock Actions
1
EBMX Harness (Talaria) for X-9000 Controller 200mm
- WRLM332
In Stock
1
EBMX X-9000 Motor Controller Version 2 Teal
- MTRC123
Low Stock
Compatibility
Manufacturer Model
Talaria Sting Offroad [TL3000]
Sting R Road Legal [TL50]
Sting R [TL4000]
Sting Road Legal [TL45]
